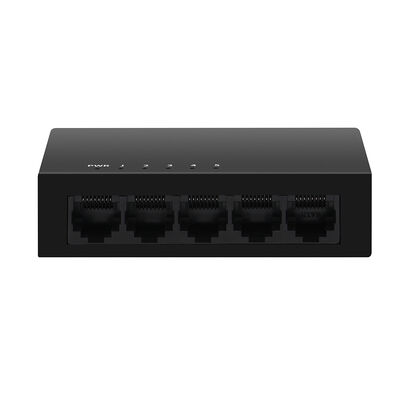

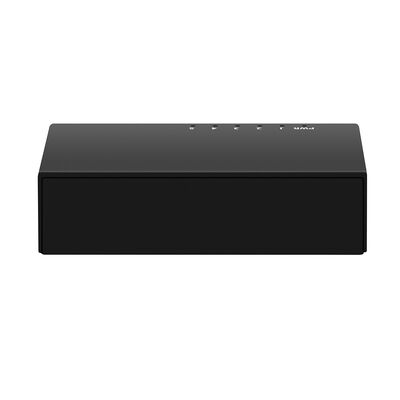

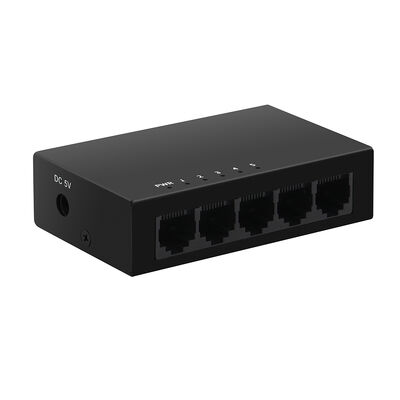

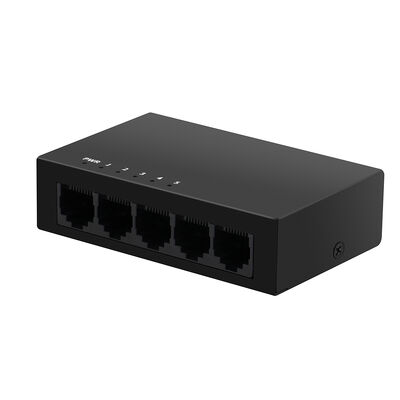

5-Port 1G Desktop Ethernet Switch
Introduction
It adopts high-quality and high-speed network intelligent chip and completely solves the noise problem of small switches in the office environment through the fan-less mute design
This switch has 5 Gigabit RJ45 ports enjoying
- seamless connection for 10/100/1000M Ethernet
- easy to manage and maintain
It can be widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions
Key Features
- 5*10/ 100/ 1000M RJ45 Ports
- Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
- Ethernet port supports 10/100/1000M adaptive
- Support auto MDI/ MDIX
- Panel indicators to monitor working status and help fault analysis
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
Specification
|
Product Name
|
5 Port 10/100/1000Mbps Ethernet Switch
|
|
Port
|
5x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)
|
|
Switching Capacity
|
10Gbps
|
|
Throughput
|
7.44Mpps
|
|
Packet Buffer
|
3M
|
|
MAC Address
|
2K
|
|
Jumbo Frame
|
15Kbytes
|
|
VLAN
|
4K
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network Protocol
|
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3x(Flow control)
|
|
Industry Standard
|
EMI: FCC Part 15, CISPR(EN55032) class A
EMS: EN61000-4-2(ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Input Voltage
|
DC5V1A
|
|
Power Consumption
|
＜5W
|
|
LED Indicators
|
PWR(Power indicator)
On: power on
Off: no power
Link(Network Link)
On: 10/100/1000M link connection is normal
Blinking: Data transmission is normal
Off: link failure
|
Dimension
Packing Information
- 1pc switch(neutral device)
- 1pc power adapter(standards vary across countries)
- 1pc user manual(including QIG information)
Shipping box information(Below information is approximately accurate)
Product size: 87*54*23mm
Inner box size: 90*88*58mm
Product weight: 0.13Kg
Packing weight: 0.2Kg
Master box size: 470*320*380mm
Packing quantity: 100Pcs
Packing weight: 21Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power adapter is included in BOTH the packing box AND unit pricing
