24 Port Managed Gigabit Ethernet Switch
What It Is

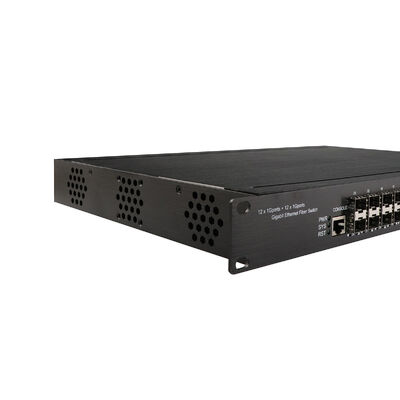

The Olycom IM-FS121200GW is a fully managed industrial Ethernet switch engineered for large-scale fiber-rich industrial networks that demand high bandwidth, long-distance transmission, and centralized network control.
Designed as a core or aggregation-layer switch, it combines high-density fiber connectivity with flexible copper access, making it ideal for industrial backbones, transportation systems, and critical infrastructure networks.

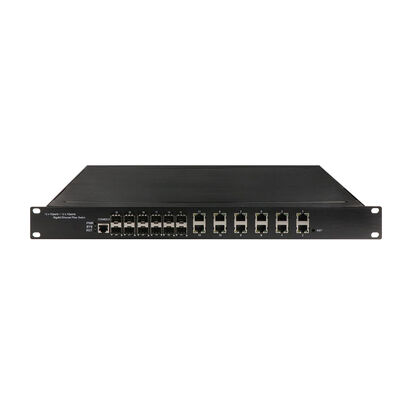

With 12 × 1000/2500Mbps SFP fiber ports supporting transmission distances up to 100 km, and 12 × 10/100/1000Mbps RJ45 ports with auto MDI/MDIX, the IM-FS121200GW enables seamless fiber–copper integration while delivering up to 2.5Gbps per fiber uplink.
A 56Gbps non-blocking switching fabric, 8K MAC address table, and support for 4096 VLANs ensure stable performance even in dense, high-traffic industrial environments.
Built for harsh conditions, the switch operates reliably from -40°C to 75°C, features an IP30-rated metal enclosure, and supports AC 220V non-polar dual power input. Optional IEEE 802.3af/at PoE (up to 500W total) allows direct powering of field devices such as IP cameras, wireless APs, and sensors. Compliance with FCC, CE, NEMA-TS2, and EN 50121-4 guarantees suitability for mission-critical, 24/7 industrial applications.
Technical Data
|
Product Name
|
10/100/1000Mbps Industrial Fiber Switch (12F+12TP)
|
|
Model No.
|
IM-FS121200GW
|
|
Port
|
12 x 100/1000/2500Mpbs SFP ports
12 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
|
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table Size
|
8K
|
|
Switching features
|
Transmission mode: storage and forward
System bandwidth: 48Gbps (non-traffic jam)
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
|
LEDs
|
Power, network, fiber
|
|

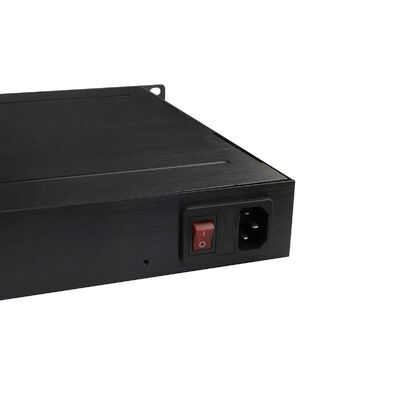

Power supply
|
Input voltage: AC220V
Non-polar power input: support
|
|
Environment
|
Working temperature: -40°～ 75°C
Working humidity: 5%～95%, non-condensing
|
|
Industry Standards
|
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A, EN61000-6-4- Emission for industrial environment
EMS: EN61000-6-2-Immunity for industrial environment, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2, Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32, Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
|
Mechanical information
|
Safety class: IP30
Dimension: 483x 294.6 x 44.5mm
|
|
Warranty
|
Replacement within 1year; 3 years repairing
|
What It Offers
1. High-Density Fiber & Flexible Access
The combination of 12 high-speed SFP ports (1G/2.5G) and 12 Gigabit RJ45 ports provides an ideal balance between long-distance fiber uplinks and local device access.
Support for 20 km to 100 km fiber modules enables wide-area industrial deployments, ring topologies, and inter-building connectivity without additional equipment.
2. Industrial-Grade Network Redundancy
To ensure uninterrupted operation, the IM-FS121200GW supports ITU-T G.8032 Ethernet Ring Protection, ERPS, and STP/RSTP/MSTP.
These mechanisms deliver sub-50 ms fault recovery, effectively preventing network loops and minimizing downtime in large industrial backbone networks.
3. Advanced VLAN & Multicast Control
Comprehensive VLAN capabilities—including IEEE 802.1Q VLAN, MAC/IP/Protocol-based VLAN, VLAN translation, and MVR—enable precise traffic segmentation and secure multi-service operation.
Built-in IGMP/MLD Snooping (v1/v2/v3) and multicast filtering optimize bandwidth usage, making the switch ideal for video surveillance, industrial monitoring, and real-time data distribution.
4. Intelligent Traffic Management & Efficiency
With QoS-based traffic classification, CoS prioritization, bidirectional rate limiting, and broadcast storm suppression, critical control traffic always takes priority.
Support for jumbo frames up to 9.6KB improves efficiency for large data flows, while IEEE 802.3az Energy Efficient Ethernet reduces power consumption during low network utilization.
5. Enterprise-Class Security
Multi-layer security features include IEEE 802.1X authentication, RADIUS/TACACS+, and ACL-based access control to protect the network edge.
Additional safeguards such as IP Source Guard, ARP Inspection, DHCP Snooping/Relay (Option 82), and HTTPS/SSH v2 encryption defend against spoofing, unauthorized access, and malicious traffic.
6. Complete Management & Maintenance Tools
The switch supports multiple management methods—Web GUI, Cisco®-style CLI, SNMP v1/v2c/v3, and Telnet—allowing easy integration into existing NMS platforms.
Features such as firmware redundancy with TFTP/HTTP upgrade, RMON, port mirroring, event logging, DNS, NTP/SNTP, and built-in cable diagnostics significantly reduce troubleshooting time and maintenance costs.
7. Built for Industrial Environments
Certified to withstand EMI/EMS interference, vibration, shock, and electrical surges, the IM-FS121200GW meets stringent industrial standards.
Its rugged enclosure and wide humidity tolerance (10%–90% non-condensing) ensure long-term stability in factories, substations, roadside cabinets, and outdoor enclosures.
8. IPv6 Ready
Full IPv6 support—including management, QoS, ACL, SNMPv6, and ICMPv6—future-proofs the network for IPv6 migration, IIoT expansion, and smart infrastructure projects.
Where It’s Used
1. Industrial Backbone & Aggregation Networks
Ideal as a core or aggregation switch in large manufacturing plants, industrial parks, and mining operations. High-density fiber ports enable redundant ring architectures, while managed features simplify network segmentation and monitoring.
2. Transportation & Rail Systems
Fully compliant with EN 50121-4, the switch is well suited for railway communication networks, traffic management systems, and roadside cabinets. Fiber-based ring protection ensures continuous operation for signaling, CCTV, and passenger information systems.
3. Energy, Power & Utility Infrastructure
Commonly deployed in substations, wind farms, and smart grid networks, where wide temperature tolerance and stable power input are essential. QoS ensures priority delivery of protection and control data.
Industrial Data Center & Park Interconnect
With 2.5G fiber uplinks and 56Gbps switching capacity, the IM-FS121200GW supports high-speed interconnection between industrial data centers, control rooms, and backbone networks. Link aggregation improves throughput and redundancy.
4. Harsh & Remote Industrial Sites
Suitable for petrochemical plants, metallurgy facilities, and remote installations where dust, electrical noise, and extreme temperatures are common. Remote management and cable diagnostics simplify maintenance in hard-to-access locations.
5. IPv6-Based IIoT & Smart Infrastructure
An excellent foundation for IIoT, smart factory, and smart city deployments, enabling seamless integration of sensors, controllers, and cloud-based management platforms over IPv6-enabled networks.
WEB Information
-
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
-
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
-
Protocol VLAN,VLAN convert, MVR
-
Support IGMP agent report, MLD snooping
-
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
-
Support cable diagnosis and can locate the fault point
-
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
-
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
-
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
-
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
-
Support Qos, transport classification Qos, Cos, bandwidth control
-
(input/output direction), storm suppression ,differentiated services
-
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
-
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
-
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
-
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Accessory
|
Industrial Optical Module
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
