Olycom Hardened Ring Managed 1G Ethernet Switch
Introduction
The Olycom IM-FP21000GW is a high-performance L2+ Ring Managed Industrial Ethernet Switch engineered for rugged industrial environments and reliable network connectivity.

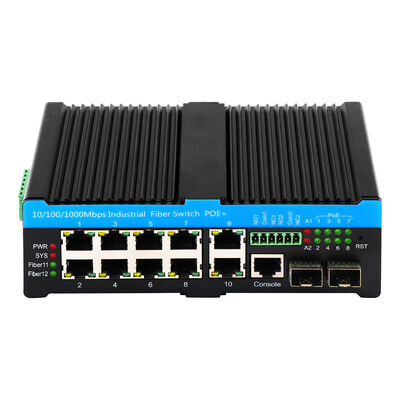

Boasting 2 x 100/1000/2500Mbps SFP fiber uplink ports (supporting single-mode/multi-mode fiber with transmission distances from 500m to 120Km) and 8 x auto-sensing 10/100/1000Mbps UTP RJ45 ports (all supporting MDI/MDIX), it also features 1 Console port, 1 6-PIN power terminal block, and 2 alarm output ports. Designed to operate in extreme temperatures ranging from -40℃ to +75℃, this Ethernet switch adopts a ribbed temperature dissipation chassis for efficient heat management and holds an IP40 protection rating.
Compliant with ITU-T G.8032V1/V2 Rapid Ring protocol and multiple IEEE standards, it delivers non-blocking system bandwidth of 40Gbps and supports advanced network management.
With 6KV surge protection and compliance with strict industrial EMC/ESD standards, it is ideal for critical infrastructure and industrial automation systems requiring stable, long-term operation.
Specification
|
Port
|
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
2*10*100/1000M UTP RJ45 Uplink(Support MDI/MDIX auto-sensing)
8*UTP Downlinks
1*Console port
1*6-PIN power terminal block
2*Alarm output
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 30Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, System, Network, Fiber, Alarm
PWR: Power, red
SYS: System, red
Network Link/Activity: Green LED
Network Data rate : Orange LED (ON for 1G)
Fiber Link: Green
LED Alarm: Red Flashing
|
|
Power Supply
|
Input voltage: DC12V~DC57V
Working Temperature: -40°C to +75°C
Reverse connection: support
|
|
Environment
|
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 165*112*45.5mm

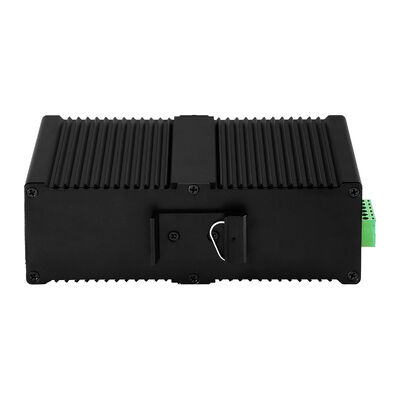

Mounting method: Din-rail mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
Key Features
1. Versatile Port Configuration
2 x 2.5Gbps SFP fiber ports (SM/MM compatible, 500m–120Km transmission) + 8 x 10/100/1000M UTP RJ45 ports (auto-sensing MDI/MDIX), complemented by 1 Console port, 1 power terminal block, and 2 alarm outputs for flexible network deployment
2. Advanced Ring Network Support
Compliant with ITU-T G.8032V1/V2 Rapid Ring protocol, plus STP/RSTP/MSTP spanning tree protocols, ensuring fast network recovery and loop protection for critical ring network configurations
3. High-Speed Data Processing
Store-and-forward transmission mode with <10us forwarding delay, 40Gbps non-blocking system bandwidth, 22.321Mpps forwarding rate, 8K MAC address table, 4096 VLAN IDs, and 4Mb packet buffer—supporting jumbo frames up to 9.6KB for smooth large-data transmission
4. Rugged Environmental Adaptability
Ribbed metal chassis for efficient heat dissipation, IP40 dust protection, and 6KV surge protection (IEC 61000-4-5: Differential ±2KV, Common ±6KV). Withstands -40℃～85℃ storage temperature and 10%～95% non-condensing humidity, resistant to ESD (±15KV air, ±6KV contact) and EFT (±6KV)
5. Comprehensive Network Management
Supports Web GUI, Cisco®-like CLI, SNMP v1/v2c/v3, and Telnet for intuitive configuration. Features cable diagnosis (fault point location), energy-efficient Ethernet (IEEE 802.3az), VLAN (802.1q), link aggregation (LACP/static), QoS, and storm suppression for optimized network performance
6. Intelligent Alarm & Protection
2-way dry-contact alarm output ports (connectable to external bells/sirens) with real-time alarm status display—triggers alerts for port failures to enable remote monitoring. Equipped with over-temperature protection and reverse power connection support for enhanced reliability
7. Compact & Flexible Installation
Corrugated metal shell (16511245.5mm) with Din-rail mounting design, lightweight (0.75Kg net weight), fitting seamlessly into tight industrial control cabinets
8. Strict Industrial Compliance
Meets CE-EMC (EN 55032/55035), CE-LVD (EN IEC 62368-1), and FCC (47 CFR Part 15 Subpart B Class B) certifications, compliant with IEC 61000 series standards for ESD, EFT, and surge—suitable for critical transportation and traffic applications
Application Scenarios
1. Factory & Process Automation
Built to support continuous and dependable communication between automation systems, including PLCs, industrial controllers, sensors, and actuators. Ensures smooth data flow across production lines and process environments, enabling precise control and stable manufacturing operations.
2. Intelligent Transportation Systems
Deployed in transportation infrastructure such as traffic cabinets, railway signaling networks, and monitoring systems. Its ring-based networking design allows data to pass through nodes without disruption, maintaining network availability for time-critical traffic and rail operations.
3. Harsh Environment & Mission-Critical Deployments
Engineered for use in electrically noisy and environmentally demanding locations, including power distribution sites, oil & gas installations, and secured outdoor facilities. Maintains consistent performance despite temperature extremes and industrial interference.
4. Fiber-Based Communication Infrastructure
Functions as a fiber access or aggregation device in private optical networks and industrial communication backbones. SFP fiber interfaces enable extended transmission distances while supporting high data throughput requirements.
5. Distributed Control & Remote Supervision
Supports reliable connectivity for geographically dispersed equipment in applications such as utilities, mining, and energy production. Integrated alarm and monitoring mechanisms help operators quickly identify faults and maintain system stability.
6. Industrial Parks & Enterprise Campuses
Provides a scalable networking foundation for industrial campuses, logistics centers, and enterprise zones, allowing large numbers of devices to connect securely while supporting centralized network management and long-term expansion.
Accessory
|
Industrial Optical Module
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
