4 Port Industrial PoE Switch with Fiber Bypass
1. Overview
The IM-FBP244GW is a fully managed industrial-grade PoE fiber bypass switch designed for high-availability Ethernet and optical transmission networks.
Integrating Gigabit PoE access, multi-gigabit fiber uplinks, and dual optical bypass channels, it ensures uninterrupted network connectivity even during power loss or device failure.
Built to operate reliably in harsh environments, the switch combines advanced Layer 2 management features with carrier-class fiber protection, making it an ideal solution for mission-critical networks where uptime, resilience, and centralized control are essential.
2. Specification
|
Product Name
|
10/100/1000Mbps Managed Industrial PoE Fiber Bypass Switch(2F+4TP)
|
|
Model No.
|
IM-FBP244GW
|
|
Port
|
2*100/1000/2500Mpbs SFP ports
2* LC bypass ports(SM/MM)
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
IEEE802.3af
IEEE802.3at
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 18Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|
|
Power Supply
|
Input voltage: 48V(max 52V)
PoE output voltage: 48V
Single PoE output power: 30W(port 1~4)
Max budget: 120W
Reverse connection: support
|
|
PoE Wiring
|
PoE af/at: 1/2(V+), 3/6(V-)
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm
Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
|
Fiber Bypass
|
|
Category
|
Unit
|
Specification
|
|
Wavelength range
|
nm
|
850±40/1300±40
|
1260~1650
|
|
Test wavelength
|
nm
|
850/1300
|
1310/1550
|
|
Insert loss
|
dB
|
Typ: 0.6 Max: 1.0
|
Typ: 0.6 Max: 1.0
|
|
Return loss
|
dB
|
MM≥30 SM≥50
|
|
Channel crosstalk
|
dB
|
MM≥35 SM≥55
|
|
Polarization loss
|
dB
|
≤0.05
|
|
Wavelength loss
|
dB
|
≤0.05
|
|
Temperature loss
|
dB
|
≤0.05
|
|
Repeat-ability
|
dB
|
≤0.05
|
|
Operating voltage
|
v
|
3.3V-5V
|
|
Service life
|
times
|
≥100000000
|
|
Switching time
|
ms
|
≤10
|
|
Transmission optical power
|
mw
|
≤500
|
|
Operating temperature
|
ºc
|
-20~+70
|
|
Storage temperature
|
ºc
|
-40~+85
|
3. WEB UI
1. Integrated Optical Bypass Protection
Dual LC fiber bypass ports automatically maintain optical continuity when the switch is powered off or encounters a fault
Ultra-low insertion loss and fast switching ensure minimal impact on fiber signal quality
Supports both single-mode and multi-mode fiber, suitable for short- and long-distance transmission
2. High-Performance PoE & Switching Capability
8× Gigabit RJ45 PoE ports delivering IEEE 802.3af/at power up to 30W per port
Total PoE budget up to 240W, supporting high-power IP cameras, wireless APs, and access devices
2× 100/1000/2500Mbps SFP ports provide flexible fiber uplinks for aggregation or ring networks
Non-blocking switching architecture with high throughput and low forwarding latency
3. Advanced Network Management & Protection
Full Layer 2 management including VLAN, QoS, IGMP snooping, link aggregation, and traffic control
Supports STP/RSTP/MSTP and ITU-T G.8032 ERPS, enabling fast ring protection and redundancy
Web GUI, CLI, SNMP, and remote management for easy deployment and maintenance
Built-in cable diagnostics and energy-efficient Ethernet (EEE) for optimized operation
4. Industrial-Grade Reliability
Wide operating temperature range from -40°C to +75°C
6KV Ethernet surge protection and EMC industrial-grade compliance
Rugged IP40 metal enclosure with DIN-rail or wall mounting options
Designed for continuous operation in outdoor cabinets and industrial sites
4. Application
1. Metropolitan Area Networks (MAN)
Ensuring uninterrupted fiber transmission and fast recovery in ring-based metro Ethernet deployments.
2. Security & Surveillance Systems
Powering and aggregating IP cameras while maintaining fiber continuity during maintenance or power failures.
3. Industrial Automation & Utilities
Supporting SCADA systems, substations, and transportation networks where network downtime is unacceptable.
4. Campus & Smart City Infrastructure
Providing resilient PoE access and fiber aggregation for smart lighting, access control, and wireless coverage.
5. Telecom & Critical Communication Networks
Acting as an edge or aggregation switch with built-in fiber bypass to enhance overall network survivability.

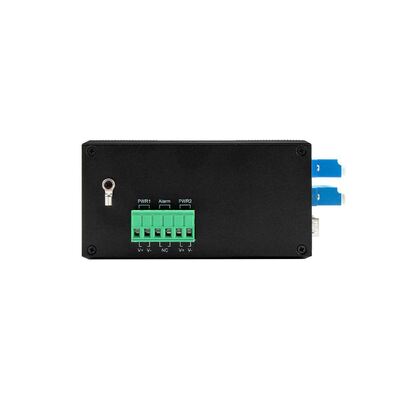

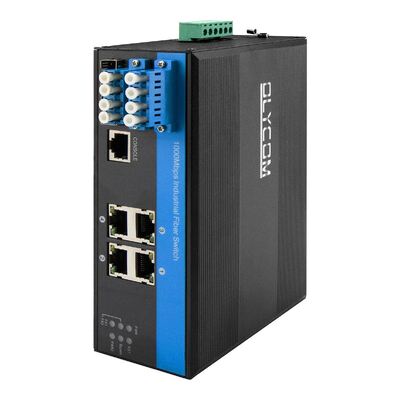

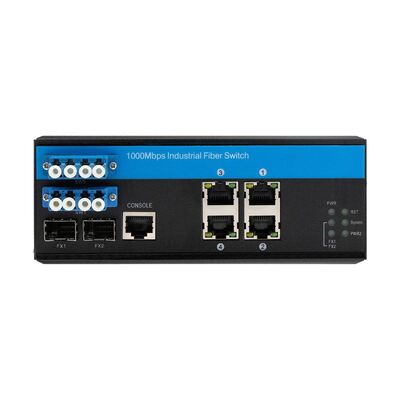

5. Photos
6. Accessory
|
Industrial Optical Module
|
|
OSPL1E06D-85
|
100BASE-FX(850nm)
|
|
OSPL1E06D
|
100BASE-FX
|
|
OSPL1E20D
|
100BASE-LX
|
|
OSPL1E40D
|
100BASE-EX
|
|
OSBL1E20D-35
|
100BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1E20D-53
|
100BASE-BX-D(TX 1550 RX1310)
|
|
OSPL1G05D
|
1000BASE-SX
|
|
OSPL1G06D
|
1000BASE-SX(1310nm)
|
|
OSPL1G20D
|
1000BASE-LX
|
|
OSPL1G40D
|
1000BASE-EX
|
|
OSBL1G20D-35
|
1000BASE-BX-U(TX 1310 RX1550)
|
|
OSBL1G20D-53
|
1000BASE-BX-D(TX 1550 RX1310)
|
|
Industrial DIN Power Supply
|
|
IM-DAC220/DC12V1.67A
|
AC220V to DC12V1.67A, -30℃～70℃
|
|
IM-DAC220/DC24V1A
|
AC220V to DC24V1A, -30℃～70℃
|
|
IM-DAC220/DC48V1.6A
|
AC220V to DC48V1.6A, -30℃～70℃
|
|
IM-DAC220/DC48V2.5A
|
AC220V to DC48V2.5A, -40℃～70℃
|
|
IM-DAC220/DC48V5A
|
AC220V to DC48V5A, -40℃～70℃
|
|
IM-DAC220/DC48V10A
|
AC220V to DC48V10A, -40℃～70℃
|
